SHARK-PROFILE-HC
SKU: 124766
FEATURES
Framing System: 4 independently controllable blades across 8 directions, full system rotates ±45°
Dual Gobo Wheels: 2 wheels with 6 interchangeable high-temp glass gobos each, with gobo overlay capability
Animation Wheel: Bi-directional rainbow/kaleidoscope effects, usable solo or combined with the prism wheel
CMY Color Mixing: Infinite CMY color combinations
CTO: Tunable from 3000K–6500K
Strobe: Electronic pulse and random strobe, 1–25 Hz
Dimmer: Flicker-free linear dimming from 0–100%
5-Year Warranty
Full parts and labor coverage
U.S. Support
Provided by Blizzard Lighting
SHARK-PROFILE-HC
CMY infinite color mixing
technical
specifications
optical
Light Source: 1200W white LED module
Zoom: 6°–50°

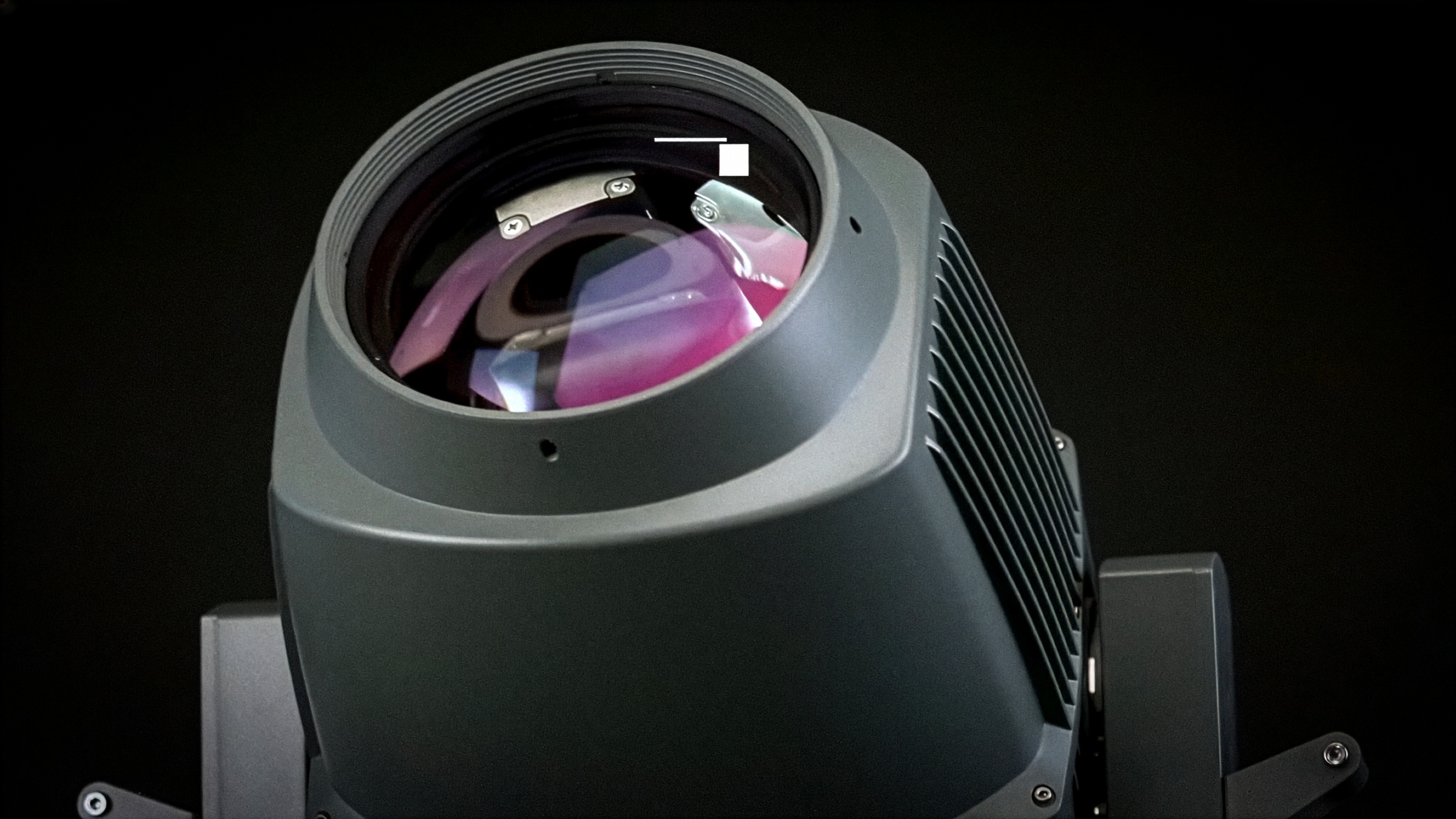

Optics: High-transmission coated lens, φ186mm
High CRI: RA≥96
Output: 32,300 lm / 18,500 lux @ 10m
Lifespan: 40,000-hour rated LED life
color
CMY: CMY infinite color mixing
CCT: 5800K
CTO: Color temperature adjustment range from 3000K to 6500K
Color Wheel: 1 color wheel, 5 colors + blank, featuring bidirectional color rainbow effect, two-color step and linear gradient effects, bidirectional rotation, and random color mode.
effects
Prism: 1 rotating bi-directional four-facet prism
Frost: Two high-transmission frosts, independently insertable and stackable (light and heavy frost), effectively enhancing brightness in frost mode
Iris: Linear adjustable from 5-100%, with macro function
Dimmer: Linear dimmer from 0-100% without flicker
Strobe: Adjustable electronic pulse strobe and random strobe from 1-25 times per second
LED Refresh Rate: 1000 Hz – 25 kHz
control
Control Channels: 44CH / 56CH
Protocols: DMX512, RDM, Art-Net (optional)
Data Connections: 3-pin or 5-pin XLR input/output
RJ45 Port: Optional
software
Software Upgrade: Via DMX signal or USB port
x/y angle of motion
Pan axis: 540° 8bit/16bit
Tilt axis: 270° 8bit/16bit
Reset function with automatic error correction
Fixed lock: Pan/Tilt axis lock
power
Input Voltage: AC 100–240V, 50/60Hz
Maximum Power Consumption: 1530W
Power Factor: 0.985
Maximum Current: 7.65A @ 220V; 15.3A @ 100V
size & weight
Product Dimensions: 509mm × 303mm × 844mm
Net Weight: 55 kg
Packaging Dimensions (Carton): 950mm × 630mm × 420mm
Gross Weight (Carton): 61.5 kg
Packaging Dimensions (Fly case 1 in 1): 960mm × 640mm × 615mm
Gross Weight (Fly case): 88.0 kg
included accessories
Signal Cable: 1 pc (Part No.: F0200020008)
Safety Rope: 2 pcs (Part No.: F0200010002)
Lamp Hook: 1 set (Part No.: C0499990007)
others

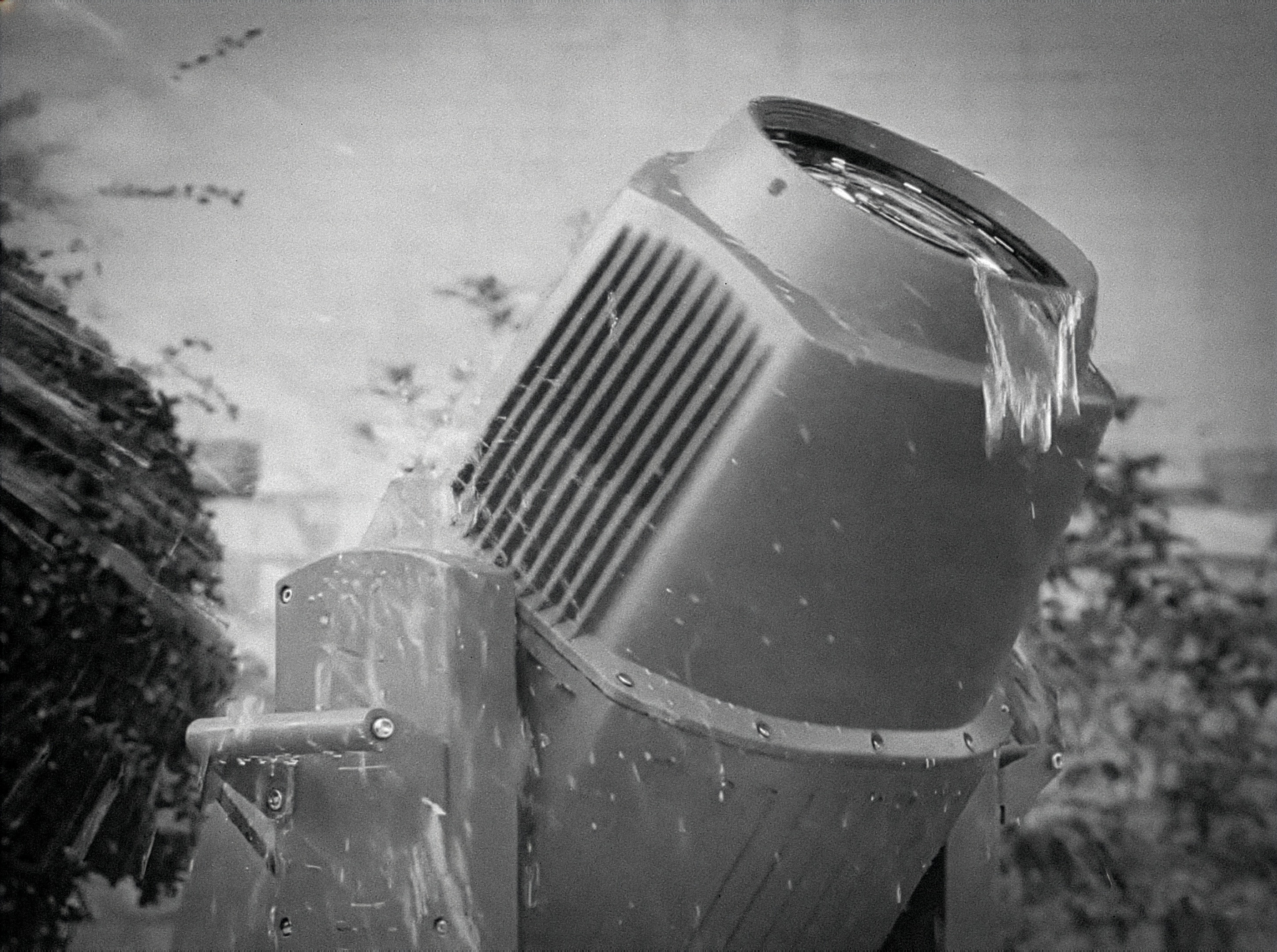

IP-Rating: IP66
Maximum Ambient Temperature: 40 °C
Maximum Surface Temperature: 80 °C
Minimum Operating Temperature: -10 °C
Thermal Management: Intelligent temperature control to ensure LED lifespan
Light Output
Photometric Data
Technical
Drawings
