AQUAPEARL-MINI

SKU: 124764

LED Chip: 7 pieces of 60W RGBW 4-in-1 LEDs, ensuring the moving head wash light has a stable performance and a long lifespan.

Functionality: Multifunctional LED moving head beam and wash.

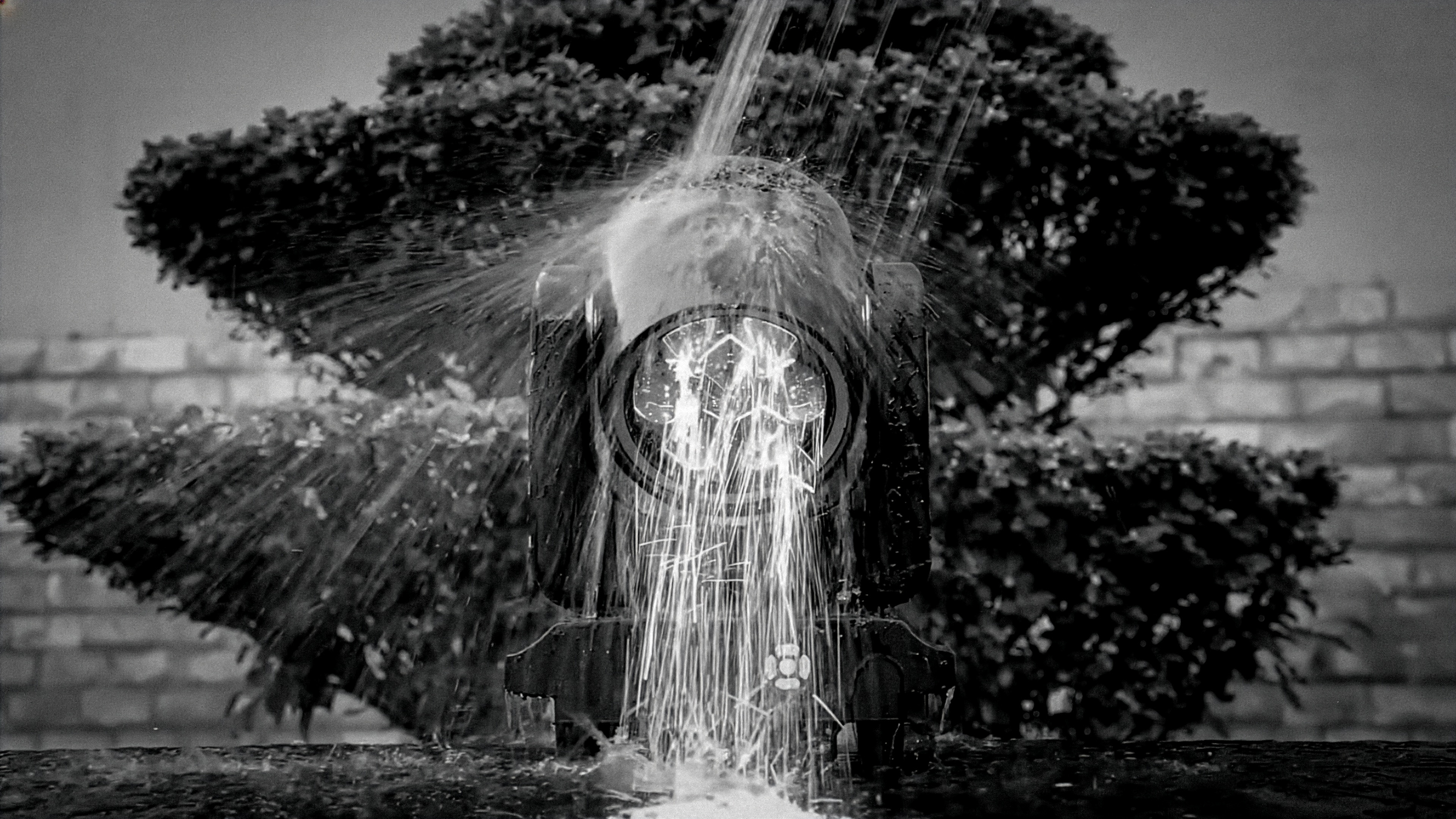

Waterproof Rating: IP66 waterproof, this indoor &outdoor sky beam light is suitable for entertainment, rental, TV, music festivals, exhibitions, variety program shows, and other occasions.
Rotating Lens: 360° infinite rotating front lens, enabling countless vortex and “kaleidoscopic” effects.
LED Control: Individual LED control allows our stage concert lights to shine with varied colors and effects.
Illuminance: 23,500 lux at 5 meters.
Total Lumen Output: 7,100 lumens.
Zoom Angle: Adjustable zoom angle from 4° to 50°.
Weight: The net weight of each wash mini LED moving head is 12.3 kg.

5-Year Warranty

Full parts and labor coverage

U.S. Support

Provided by Blizzard Lighting

AQUAPEARL-MINI

Dynamic beam + wash

technical
specifications

summary

We've has been in the stage lighting game for 30+ years, and our latest drop is the Aquapearl Mini. It's got a clean, sleek look and keeps things compact and lightweight so you can take it pretty much anywhere.

Load it up with multiple color and dynamic effect macros and you've got a ton of versatile lighting options right out of the box, including a killer marquee effect.

optical

Light source: 7x60W RGBW 4 in 1 LED
Beam angle: 4° to 32°
Zoom angle: 5° to 50°
Light color temperature range: 2500K to 10000K
Illuminance: 23500lux@ 5m
Total lumen output: 7100LM
Light source average life span: 20000H

color

Color mixing: RGBW color mixing system, can make rainbow effect

effects

Zoom system: Linear electric zoom
Individual LED control: Individual LED control, outstanding effect

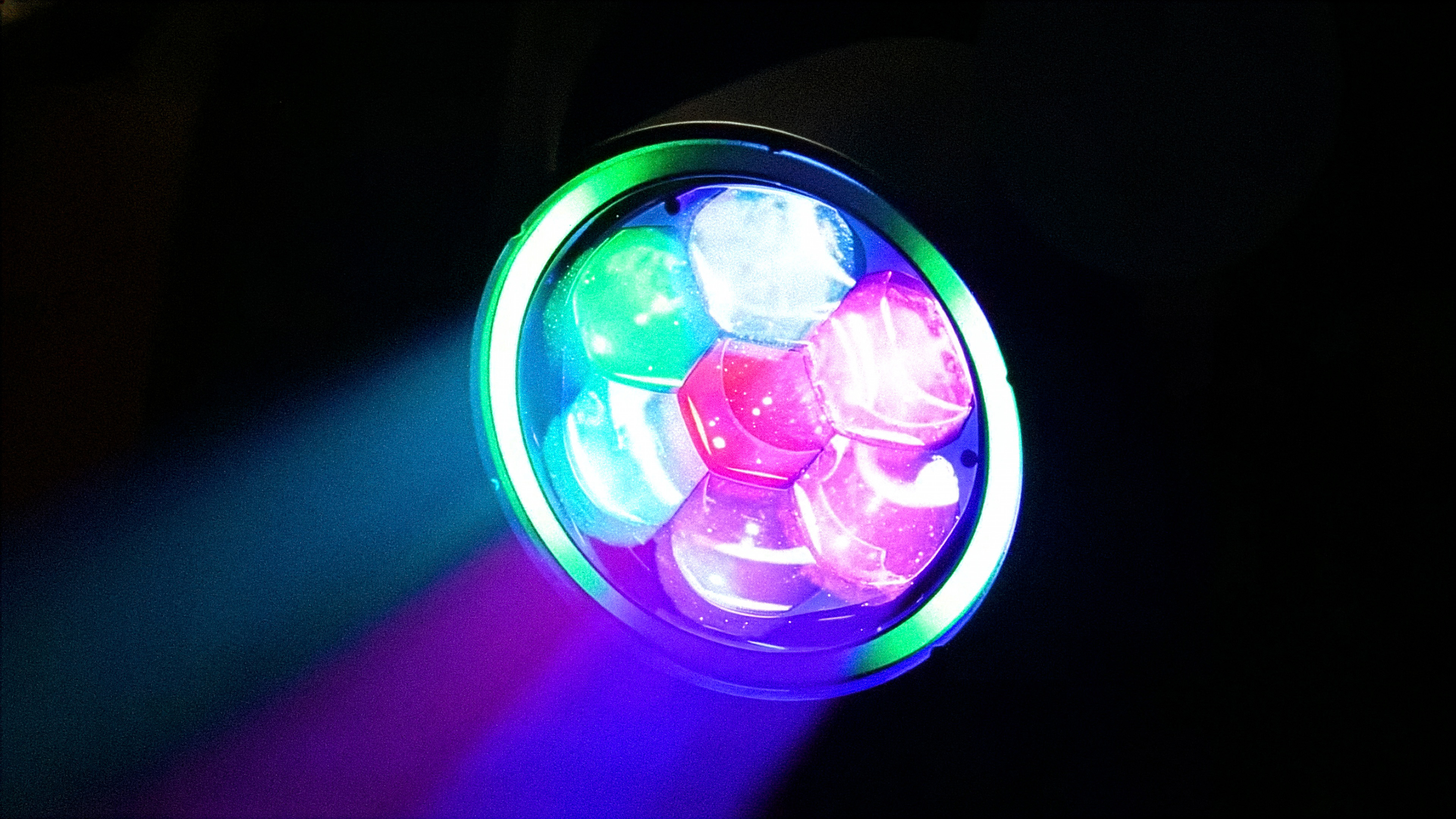

Front ring AURA: The front ring AURA’s LED chip can be controlled individually, can make flow color effect
Effect macro: Static effect macro function and dynamic effect macro function
Dimmer: Electronic dimmer, provides four dimming options
Strobe: 0.5-25Hz electronic strobe and random strobe

control

Channel mode: 31CH,55CH,21CH,35CH,28CH
Control protocol: DMX512, RDM、ARTNET
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD display screen. With Chinese and English two version language.

software

Software upgrade: Upgrade via DMX connector or USB
Temperature control: Intelligent temperature control to ensure LED life

x/y angle of motion

Pan/Tilt: 540°/250° 8bit/16bit
Reset function with automatic error correction
Fixed lock: Tilt axis lock

power

Voltage: AC 100-240V 50/60Hz
Power: 480W PF 0.9

size & weight

Light dimension: 329×245×454(mm)
N.W: 12.3 kg/pcs
Carton dimension: 410×290×625(mm)
G.W with carton: 15.7kg/pcs

certifications

The product implementation standard: GB 7000.1-2015 GB7000. 217-2008
Approved certifications: CE, RfoHs
The product complies with the following EU directives: Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU

road case
