AQUAPEARL-PRO-II
SKU: 124749
Light Source: Original 19pcsX40W RGBW LED, stable performance, long lifespan.
Versatile: Integrates LED beam and coloring functions, high brightness, long range, wide application.
Rich and colorful effects: Can be individually controlled, offering a variety of color gobos.
Rotating front lens creates countless vortex effects, projecting a “kaleidoscopic” effect in the air.

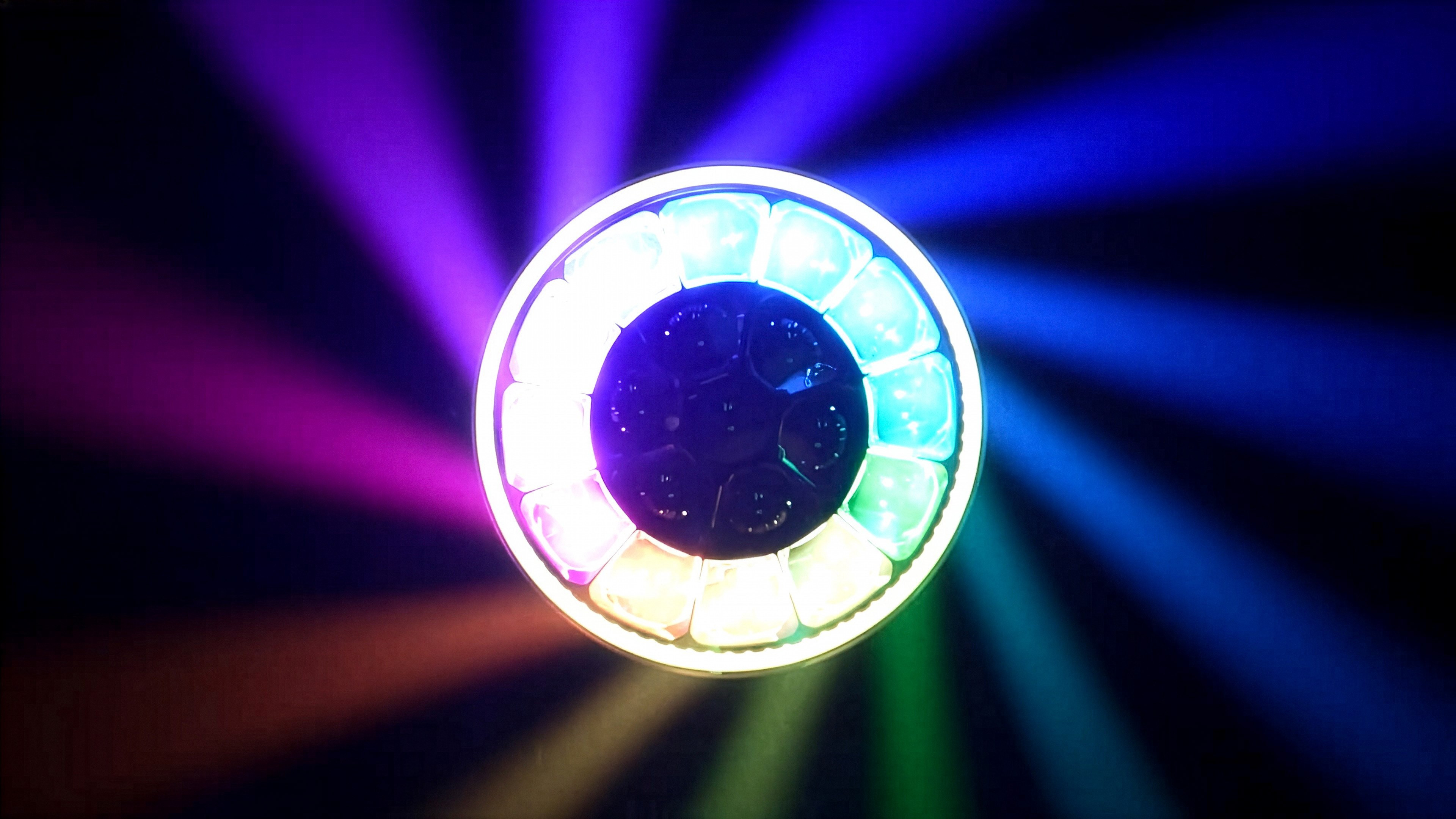

Front halo can be individually controlled, allowing for dynamic color-changing effects.
5°-45° optical zoom, wide zoom range.

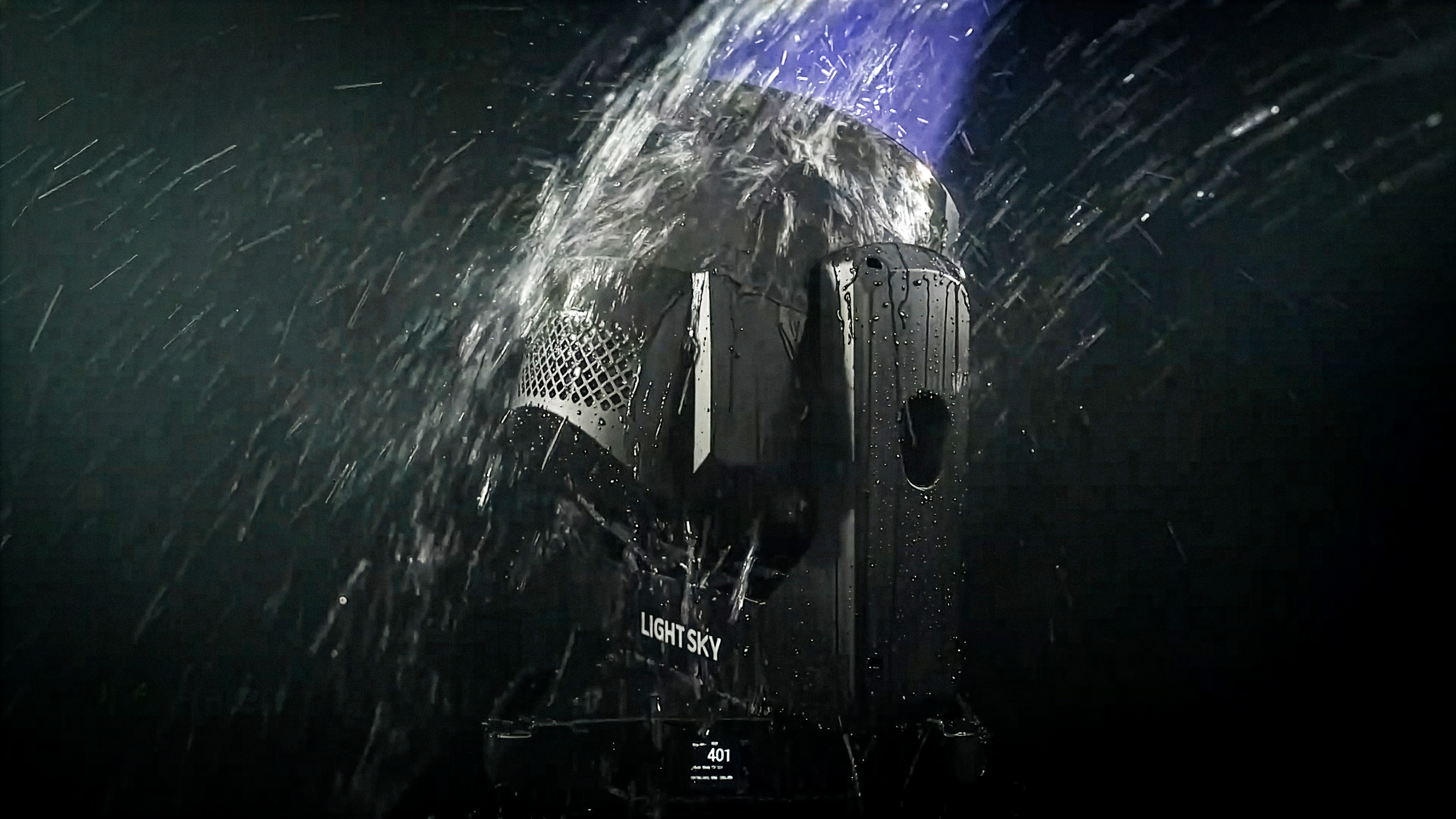

Protection rating: IP66, designed for outdoor use with waterproof, dustproof, and oil-resistant features.
5-Year Warranty
Full parts and labor coverage
U.S. Support
Provided by Blizzard Lighting
AQUAPEARL-PRO-II
the ultimate beam + wash
technical
specifications
summary
The Aquapearl Pro II is a seriously versatile IP66 moving head that pulls double duty as both a beam and wash fixture. It runs 19 high-power 40W RGBW LEDs with a uniform color mixing system, pumping out rich, vibrant color wherever you point it.
optical
Light Source: 19×40W RGBW LED
Beam Angle: 5° – 25°
Zoom Angle: 7° – 45°
Color Temperature: 2500K to 10000K
Illuminance: 32,000 lux @ 5m
Total lumen output: 9700 Lm
Light source average life span: 20,000 hours
color
Color Mixing System: Uniform RGBW color mixing system and rainbow effect
effects
Zoom System: Linear electronic zoom
Pixel Control: Each LED can be controlled independently for versatile color effects
Front Ring: The front luminous circle can be controlled individually to create dynamic color-changing effects
Effect Macros: Includes static and dynamic effect macro functions.
Dimming: Electronic dimming with four dimming curves, four dimming frequencies, and four dimming speeds.
Strobe: 1-30Hz electronic strobe and random strobe effects.
control
Control channels: 26CH, 98CH, 28CH, 100CH, 35CH
Protocols: DMX512, RDM, Art-Net, sACN
DMX and RDM connectors: 3-pin or 5-pin XLR IN/OUT
Display: LCD screen
software
Software Upgrade: DMX signal interface
Temperature Intelligent Control: Ensures LED lifespan through temperature intelligent control
x/y angle of motion
Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 218°, 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock: Tilt axis lock
power
Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 730W
Power Factor: 0.977
Maximum Current of Fixture: 3.32A/220V; 7.3A/100V
size & weight
Product Dimensions: 440 × 333 × 567mm
Net Weight: 25.0 kg
Carton Packaging: 515 × 415 × 675mm
Gross Weight: 30.3 kg
included accessories
Power Cable: 1 pc (Part No.: C1400050050)
Signal Cable: 1 pc (Part No.: F0200020087)
Safety Rope: 2 pcs (Part No.: F0200010002)
Lamp Hook: 1 set (Part No.: C0499990040)
road case
Fly case Packaging (2 in 1): 860×550×760mm
Gross Weight: 90.9kg
others
IP-Rating: IP66
Operating Environment: -20°C ~ 45°C
Maximum Surface Temperature of Fixture: 65°C
Light Output
Photometric Data
Technical
Drawings
