SUPER-SCOPE-PRO

Name: SUPER-SCOPE-PRO
Brand: LightSky
SKU: 124751
Availability: InStock

SKU: 124751

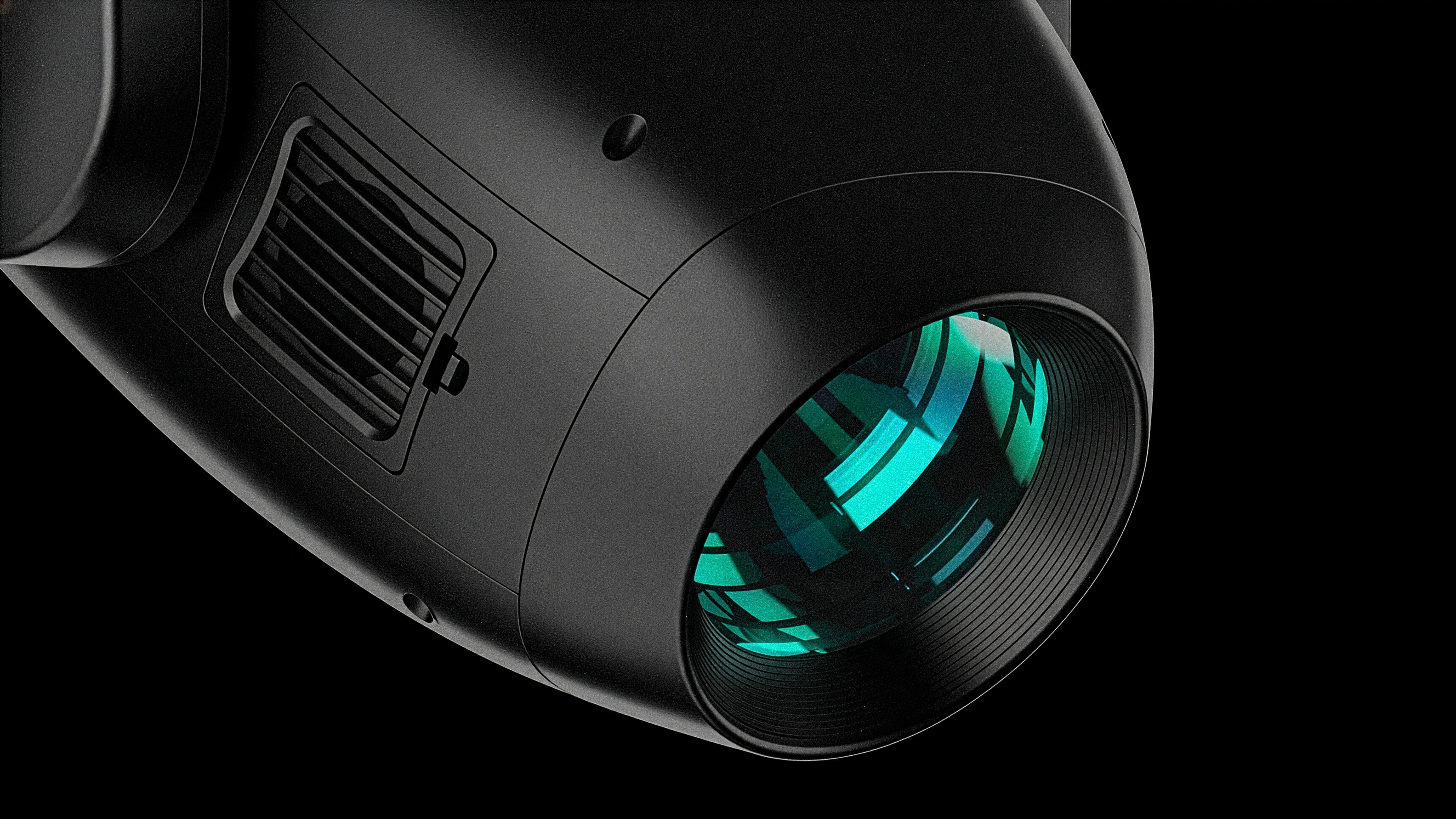

Meet the Super Scope Pro, our advanced 4-in-1 LED moving head that does it all. A 133mm lens delivers crisp, clean spots and beams, the gobo module brings dynamic patterns to life, and the cutting module keeps your images sharp and distortion-free.

At 24,000 lux at 10 meters and a CRI of 90, it hits hard in even the most demanding venues, from theaters and TV studios to concerts and arenas. This is what professional LED technology looks like.

FEATURES

Energy-saving and environmentally friendly: SUPER SCOPE PRO is a moving head light with beam spot wash profile 4 in 1 function. Adopts an energy-saving and environmentally friendly long-lifetime LED module
Multi-Function: Super Scope Pro is a 4 in 1 moving head computer light.
Wide Zoom Angle: The Super Scope Pro series LED moving headlight’s zoom angle is 4°–53°.
CRI: 70+ with a CRI filter value up to 90
System: SUPER SCOPE PRO LED Spot Moving Head equipped with CMY infinite color mixing system
Illuminance: 24000 Lux @ 10 m
Total lumen output: 20000 Lm

Request a Quote Request a Demo

5-Year Warranty

Full parts and labor coverage

U.S. Support

Provided by Blizzard Lighting

SUPER-SCOPE-PRO

technical
specifications

optical

Light source: 450W white LED module
ZOOM angle: 4 ° to 53 °
Front lens diameter: 133MM
Output color temperature: 6500K
CRI: 70+ with CRI Filter value up to 90
Illuminance: 24000 Lux@10M
Total lumen output: 20000Lm
LED source life expectancy: 50,000 hours*
Rotation gobo wheel: 1 rotation gobo wheel ,each with 7 pcs interchangeable gobo, gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm;
Effect disc (water texture) + CTO color temperature linear adjustment, which can achieve flowing and shaking effects.
Framing system: 4 blade ,each blade can be eight direction and +/- 45° degree rotation

color

CMY: CMY infinite color mixing

CTO: Linear CTO from 3000K to 6500K

Color wheel: 5 color pieces + high CRI piece + white light , can achieve bi-directional color rainbow effect, double color step gradient(liner movement), color wheel bi-directional rotation, random color mode.

effects

Iris: Motorized with variable pulse and random effects
Strobe: Electronic pulse strobe and random strobe
Focus: Motorized focus
Dimmer: 0 to 100% linear dimmer
Prism: 4 facet prism + bidirection rotation
Frost: 1° light frost
LED refresh rate: 1000Hz ~ 25KHz

control

Channel mode: 33CH , 36CH

Control protocol: DMX 512, RDM ,ARTNET

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT

Power connector: Seetronic

Hanging system: foldable light hook

Display: LCD liquid crystal screen

Noise level control: High brightness mode, standard mode, silent mode

software

x/y angle of motion

Pan: 540° 8bit/16bit precision scanning
Tilt: 270° 8bit/16bit precision scanning
Reset function with automatic error correction
Fixed lock: Tilt axis lock

power

Voltage: AC 100-240V 50/60Hz
Power: 620W
Power factor: 0.98

size & weight

Housing: Engineering plastic PA66
Light dimension: 442 x 262 x 648mm
N.W: 26.3kg/pcs
Carton dimension: 490 x 365 x 755mm
G.W with carton: 32.1 kg（ include foldable clamp）
Flycase dimension: 730 x 575 x 850mm
G.W with fly case: 95.3kg (2 in 1)

certifications

The product implementation standard: GB 7000.1-2015 GB7000. 217-2008
Approved certifications: CE, RoHs
The product complies with the following EU directives: Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU

others

IP-Rating: IP20
Working environment: 0℃~ 40℃
Maximum surface temperature of the lamp body: 80°C
Maximum lamp current: 6.2A/110V; 3.1A/220V
Optional accessories: FAST LOCK
