SUPER-SCOPE-II

Name: SUPER-SCOPE-II
Brand: LightSky
SKU: 124752
Availability: InStock

SKU: 124752

We're one of the leading moving head light manufacturers out there, and we've got you covered for indoor and outdoor applications alike.

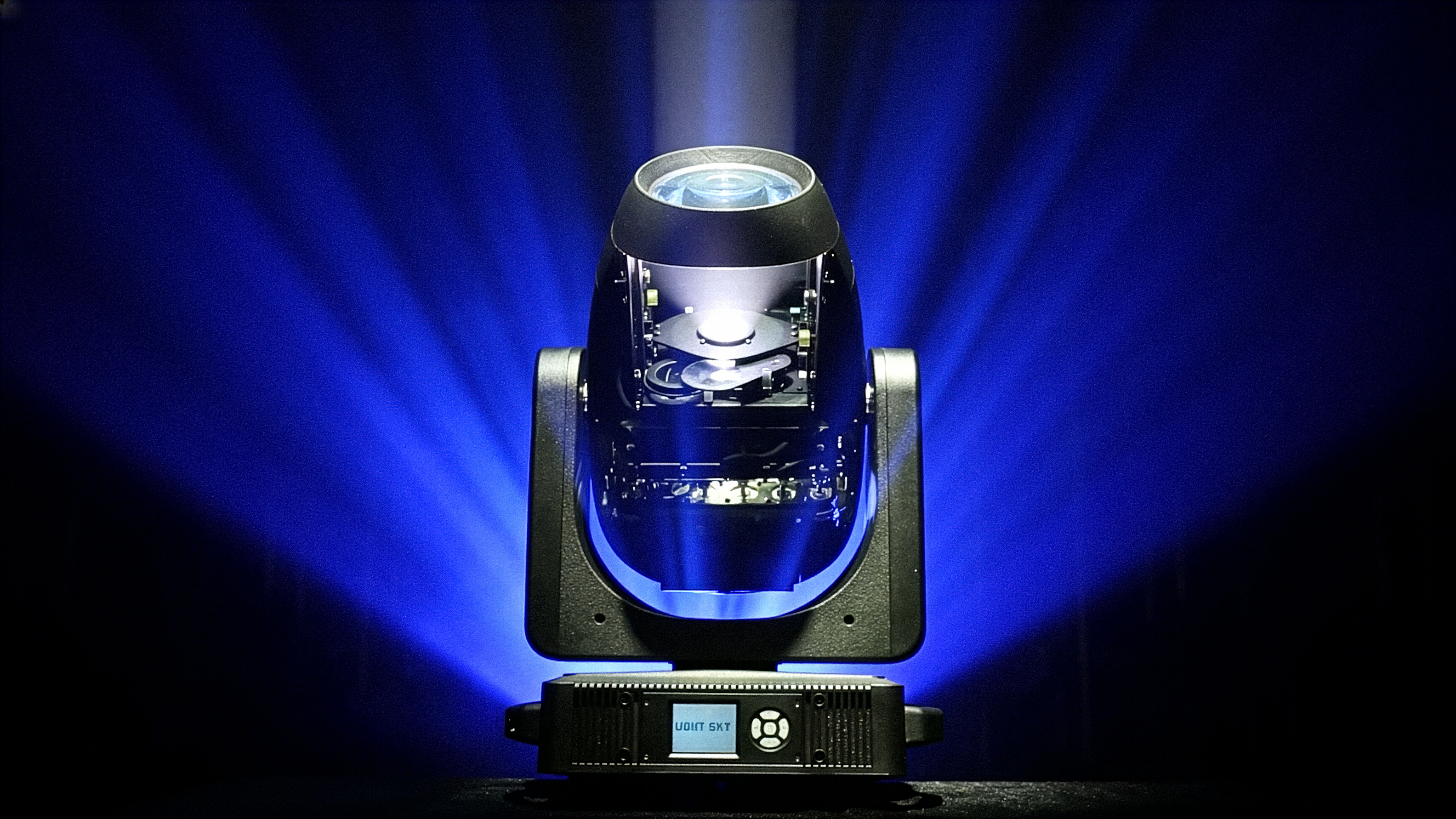

The Super Scope II is our unique LED moving head spot with a compact, lightweight build and precise pan/tilt control. It's right at home in theaters, TV studios, concerts, stadiums, and pretty much any professional venue you can think of.

FEATURES

4-in-1 Versatility: Our spot profile light combines beam, spot, wash, and profile functions in one powerful unit.
Eco-Friendly Design: Energy-efficient LED module with 50,000 hours lifespan.

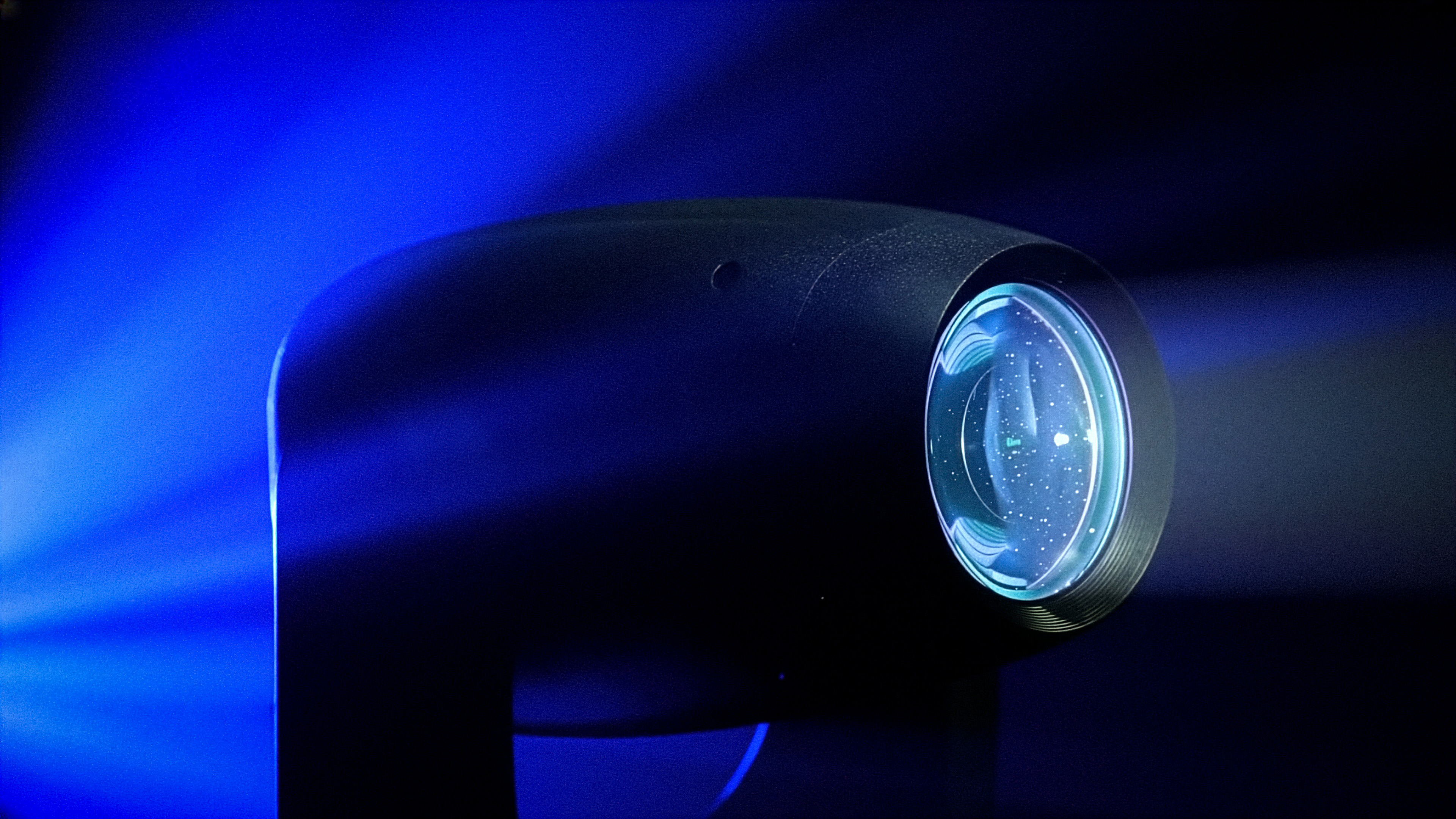

Exceptional Optics: The moving head spot has a 140 mm front lens with a wide 3.8°-50° zoom range.
Vivid Color: Standard CRI ≥72 (upgradeable to 88 with high-CRI filter).
Precision Color Mixing: The moving head profile light has an advanced CMY infinite color system.
Brilliant Output: 24,500 Lux @10m (20,000 Lumens total output).
Advanced Framing: 4 independently rotating blades (±60°) with 8-direction control.

Request a Quote Request a Demo

5-Year Warranty

Full parts and labor coverage

U.S. Support

Provided by Blizzard Lighting

SUPER-SCOPE-II

CMY infinite color mixing

technical
specifications

optical

Light Source: 520W White LED module
Zoom Range: 3.8°- 50°
Optical Lens: High-transmission coated lens, diameter 140mm
Color Temperature: 7000 K
Color Rendering Index (CRI): RA≥72 (High CRI filter up to 88)
Illuminance: 24,500 Lux@10m
Total lumen output: 20000 Lm
LED source life expectancy: 50,000 hours*
Rotation gobo wheel: 2 rotation gobo wheels, each with 7 pcs interchangeable gobo, gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm;

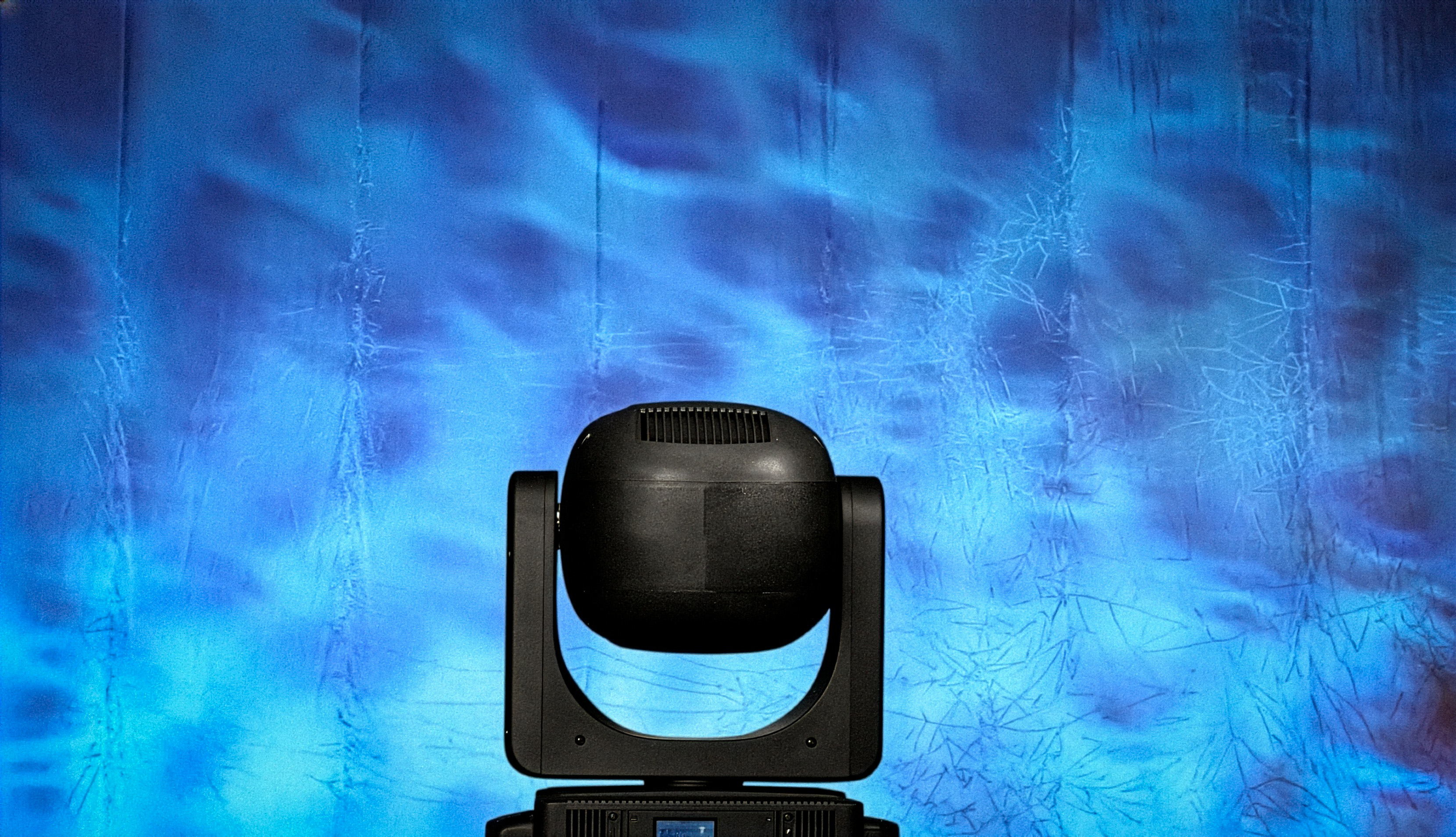

Animation wheel: 1 dynamic animation wheel -flow water effect
Framing system: 4-blade, each blade can rotate in eight directions and +/- 60° degrees

color

CMY: CMY infinite color mixing
CTO: Linear CTO from 3000K to 7000K
Color wheel: 6 Color pieces + High CRI filter + Blank, can achieve bi-directional color rainbow effect, double color step gradient(linear movement), color wheel bi-directional rotation, and random color mode.

effects

Prism: 4-Linear Prism + 4-facet prism, bidirectional rotation
2 frost system: light frost and Heavy frost
Electric Iris: Linear adjustment from 5% – 100%, with macro function for multiple effects
Electronic Dimmer: Linear dimming from 0% to 100%, uniform light spot
Electronic Strobe: Speed adjustable from 0.5 to 25 flashes per second
LED Refresh Rate: 1000Hz ~ 25KHz

control

Control Channels: 42CH, 54CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD screen

software

Software Upgrade via USB or DMX interface

x/y angle of motion

Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 270°, 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock: Pan/Tilt

power

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 960W
Power Factor: 0.99
Maximum Current of Fixture: 9.6A/100V; 4.36A/220V

size & weight

Product Dimensions: 442 × 267 × 656mm
Net Weight: 28.3kg
Carton Packaging: 495mm × 345mm × 775mm
Gross Weight: 34.7 kg (including folding hook)

included accessories

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: C1400060031)
Safety Rope: 2 pcs (Part No.: F0200010002)
Lamp Hook: 2 sets (Part No.: C0499990023)

others

IP-Rating: IP20
Operating Environment: -10°C ~ 45°C
Maximum Surface Temperature of Fixture: 80°C
Temperature Intelligent Control, ensuring LED lifespan
Noise level control: High brightness mode, Standard mode, Silent mode
