PIKE
SKU: 124756
Meet the Pike, our IP66-rated waterproof LED light bar packing 672 RGB LEDs and 112 high-power cold white LEDs into one seriously capable fixture. You're getting vibrant color effects, smooth dimming, dynamic strobe, and a unique electronic frost effect that sets it apart.
The compact, lightweight aluminum body makes it easy to rig up and ready to go for outdoor events, concerts, festivals, bars, and nightclubs.
FEATURES

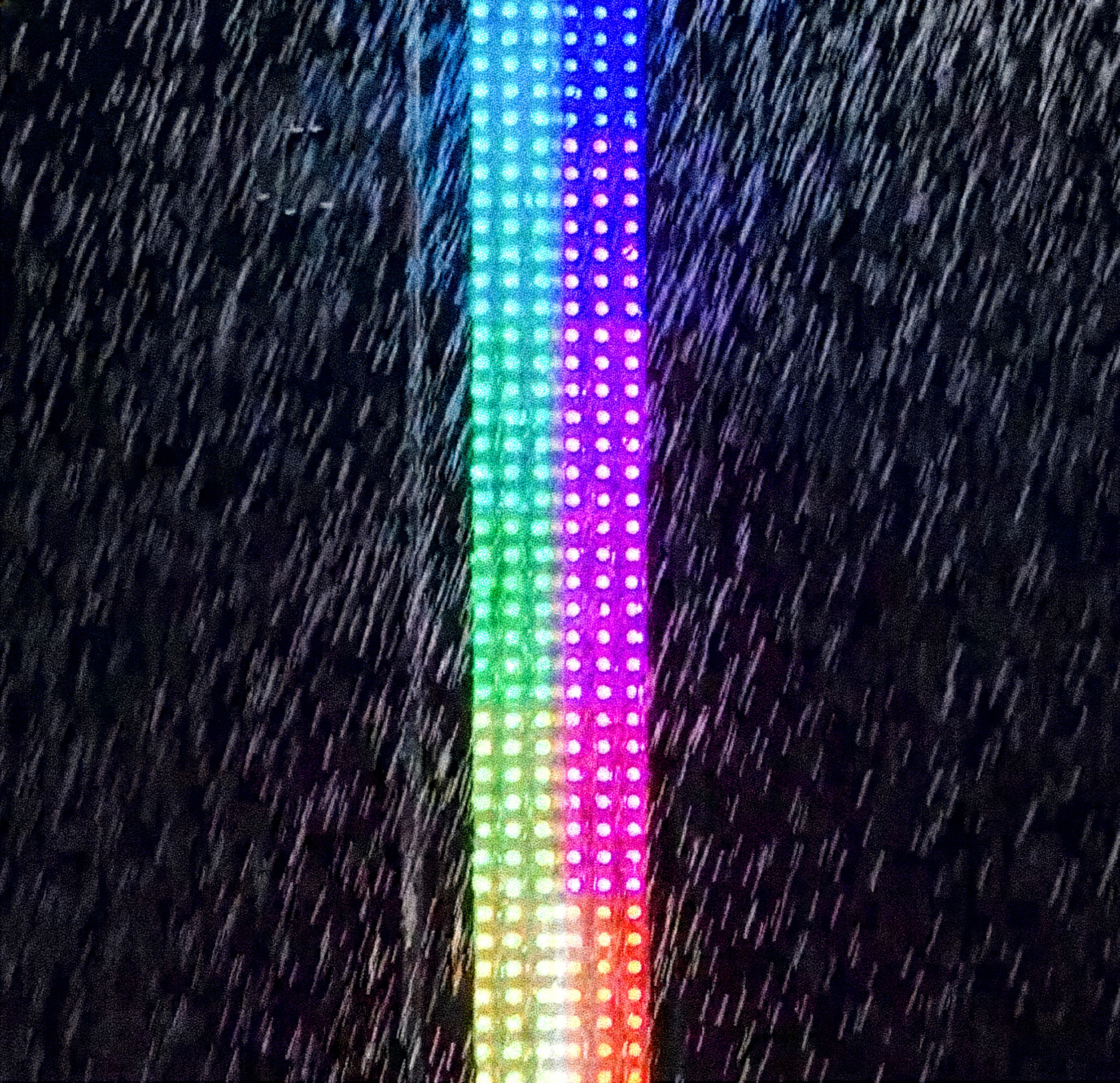

IP66 Rated: Fully weatherproof for demanding outdoor and indoor environments
Dual LED Array: 672×0.5W RGB + 112×3W cold white LEDs
Versatile Effects: Classic strobe, smooth dimming, and electronic frost for colorful chase and color-changing looks
Compact & Connectable: Lightweight aluminum housing with built-in splicing pins for fast, seamless linking
Stage-Ready: Ideal for festivals, concerts, variety shows, bars, and nightclubs
5-Year Warranty
Full parts and labor coverage
U.S. Support
Provided by Blizzard Lighting
PIKE
IP66-rated waterproof LED light bar
technical
specifications
optical
Light source: 672x0.5W RGB LED and 112 x 3W Cold White LED
Beam angle: 71.5°
Spot angle: 114°
CRI: RA≥80
LED source average lifespan: 20,000 hours
effects
Color mixing system: Uniform RGB color mixing system and rainbow effect
LED Control: RGB LED zone and white LED zone can be controlled individually, create outstanding transformation effect
Effect macros: Static effect macros and dynamic effect macros
Dimming: Electronic dimming with four dimming curves
Strobe: 1-30Hz electronic strobe and random strobe
control
Control channel: 15CH (standard), 07CH, 70CH, 117CH, 68CH, 65CH, 33CH, 17CH, 112CH, 39CH, 21CH (see channel chart for details)
Protocol: DMX512 protocol, RDM protocol, Art Net
Data connection: 3pin or 5 pin(optional) , RJ45 network input/output
Display: LCD screen
software
Software upgrade: DMX interface
power
Rated voltage: AC 100-240V 50/60Hz
Maximum power: 450W
Power factor: ＞ 0.96
Maximum current: 2.1A/220V; 4.5A/100V
size & weight
Product size: 1000×93×225mm
N.W.: 8.8kg
Carton packaging size(default) : 1095×310×170mm
G.W.: 11.9kg
included accessories
Power Cable: 1 pcs
Signal Cable: 1 pcs (3 core (default)/5 core (optional)
Safety Rope: 2 pcs
Clamps system: 2 pcs (folding lamp hook)
others
IP-Rating: IP66
Temperature control: Intelligent system for LED lifespan
Operating environment：-20 ℃ ~ 45 ℃
Maximum Surface Temperature of Fixture: 65 ℃

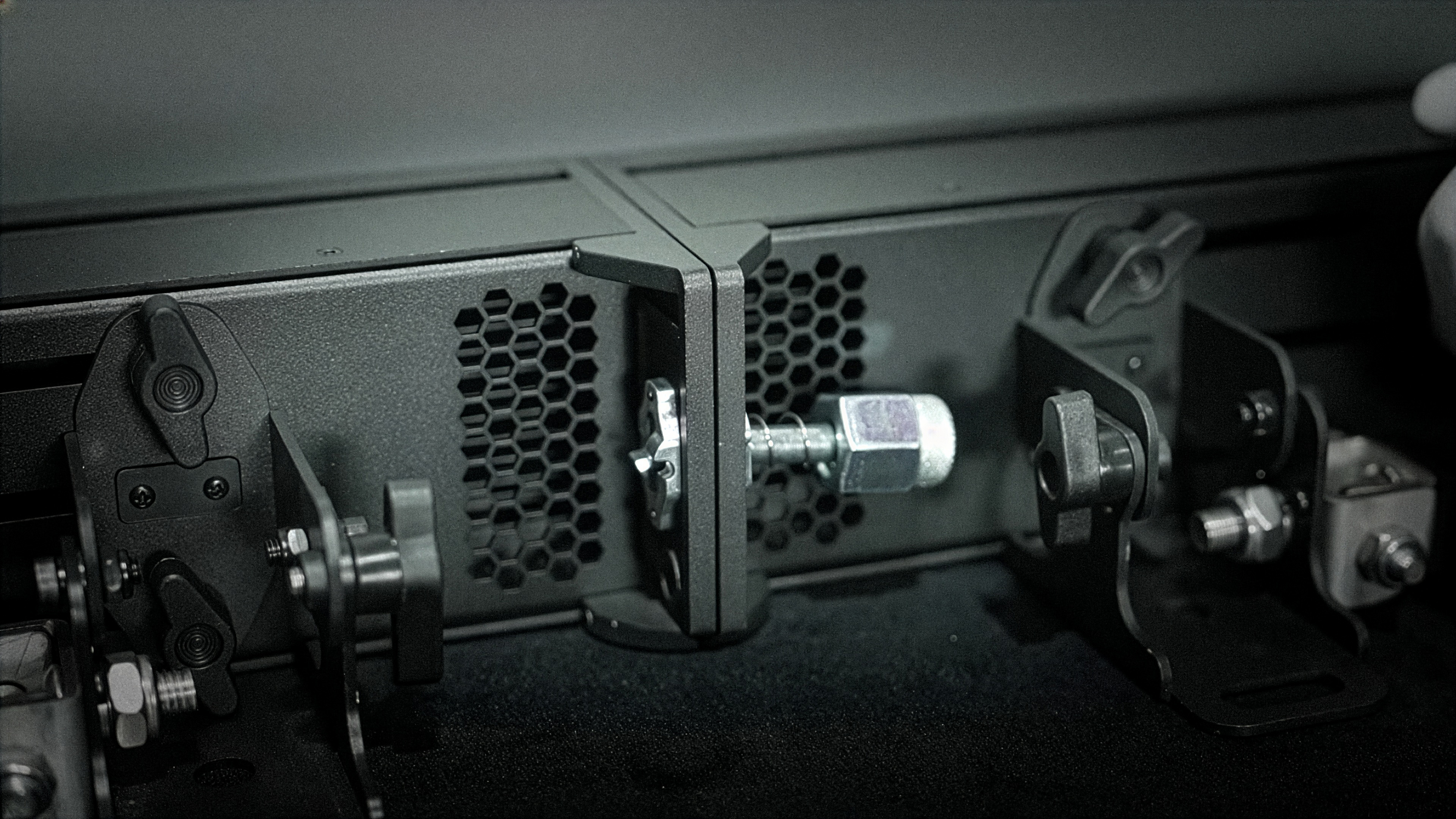

Connection System: Built-in splicing pins for quick connection between fixtures
Light Output
Photometric Data
Technical
Drawings
